Product Information

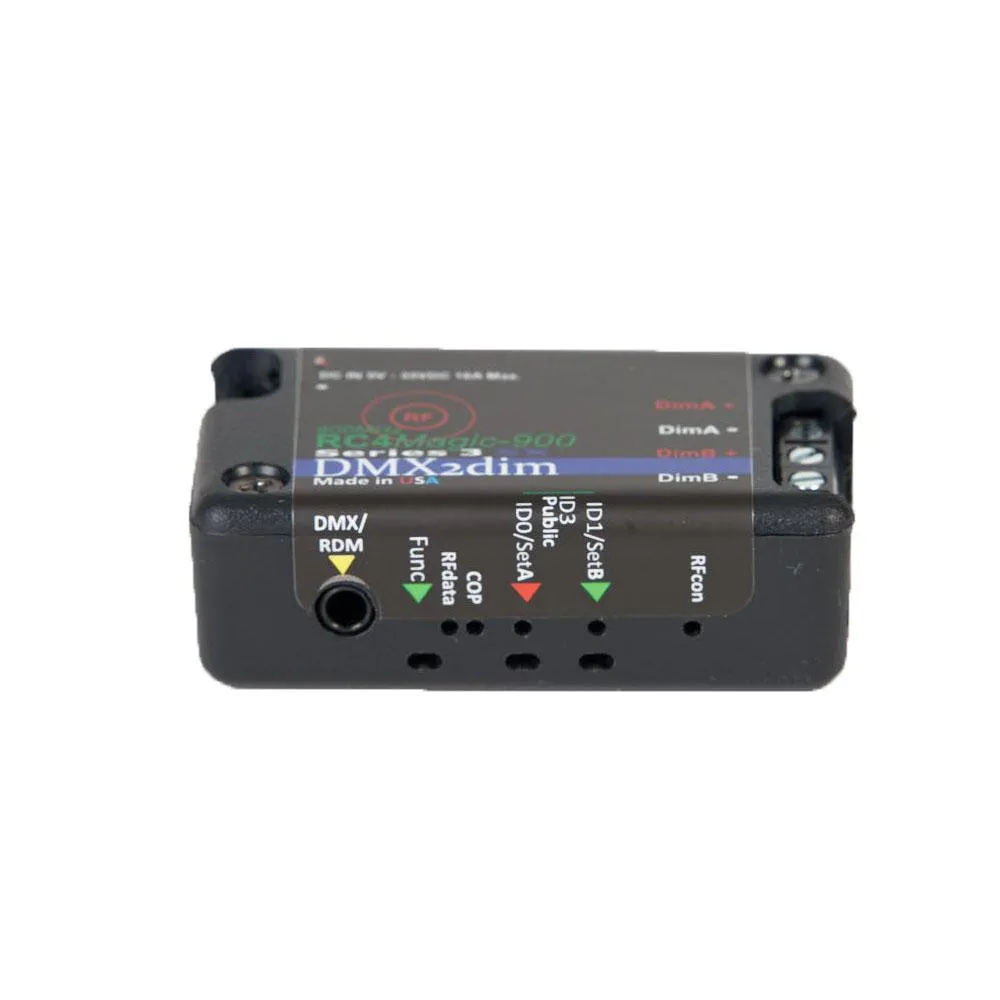

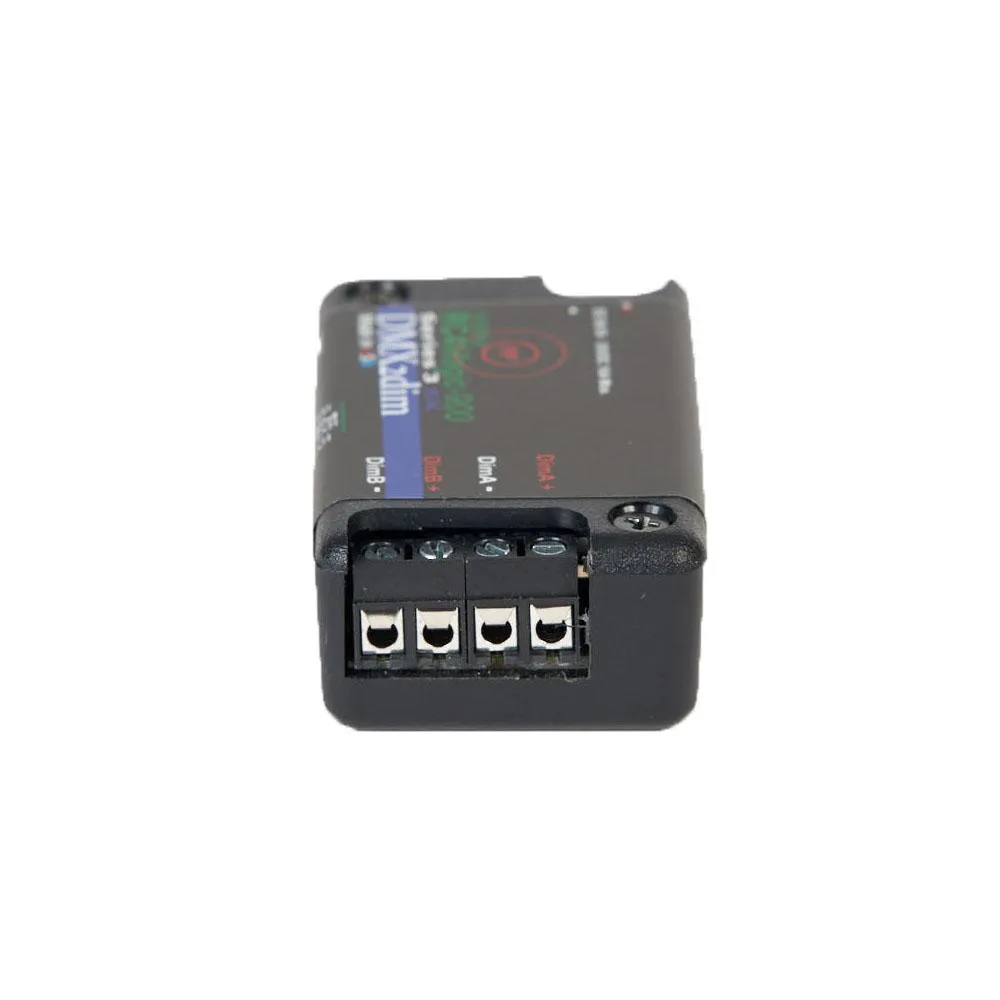

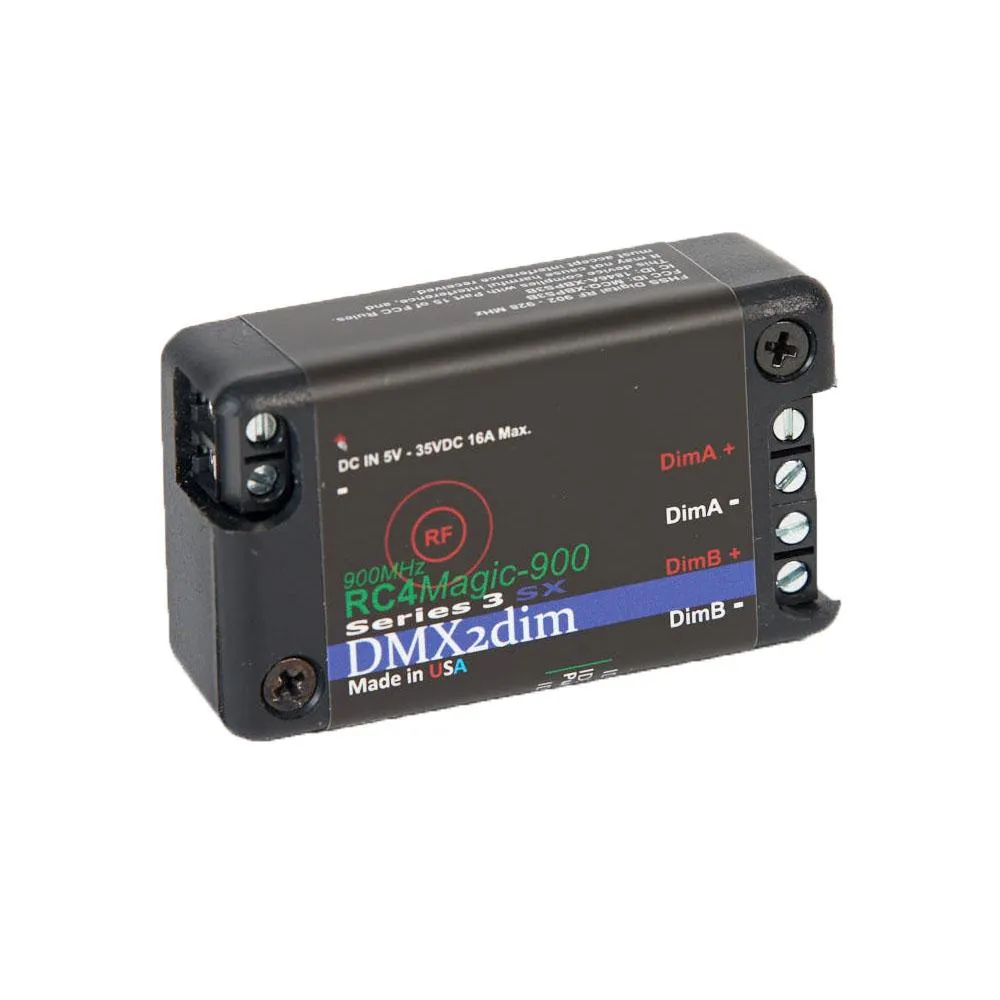

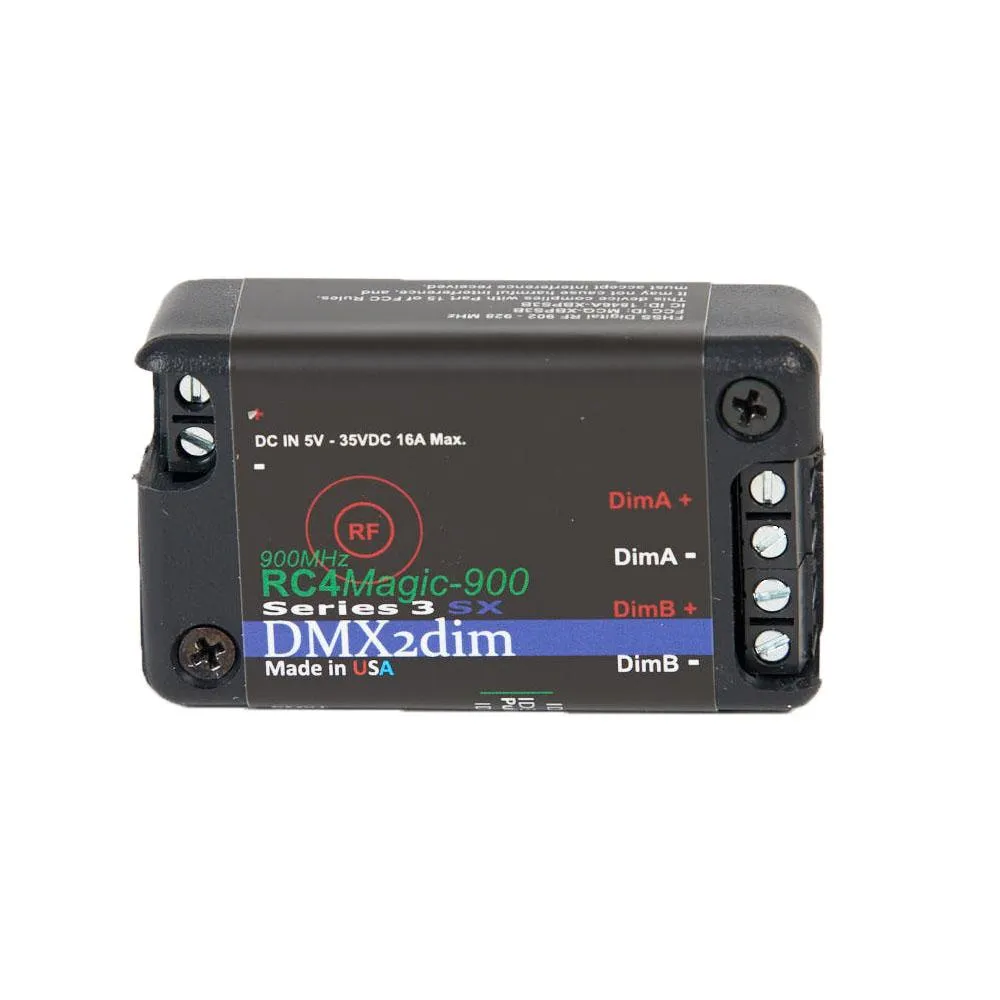

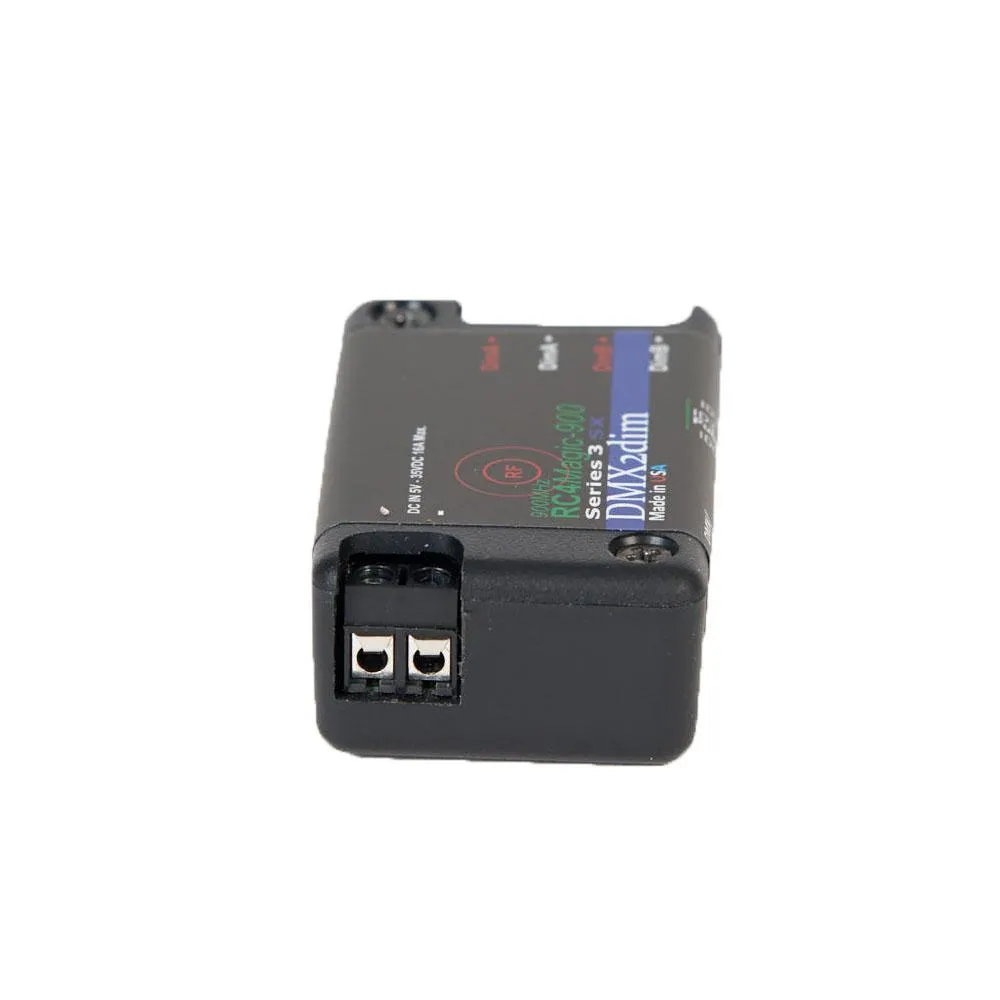

A battery-powered 2-channel wireless DMX dimmer for LEDs, lamps, and motors in small props, costumes, and more. RC4Magic-900 operates in the 902-928 MHz RF band, licensed ONLY for use in USA, Canada, Australia, New Zealand and Brazil.

TECHNICAL SPECIFICATIONS

Dimensions: 2.36″ x 1.38″ x 0.79″ (60mm x 35mm x 20mm)
Weight: 1.40 oz
Power Input: 6VDC – 35VDC, 0.4W idle, screw terminal connections
Dimmer Outputs: 2 dimmers, screw terminal connections; 77Hz, 615Hz, 1.2kHz, 5kHz, 10kHz, 20kHz, 40kHz PWM; 19-bit (524,000 steps); Non-Dim, Linear, ISL, servo control; ac-wave (ring telephone and more); 8 levels of RC4 Digital Persistence™
Series 3 Versatility: DMX dimming, RC4 Flkr Engine™, RC4 ColorMatch™, RC4 HSL Color Controller, RC4 HotPatch™, RC4 Commander 3.x compatible, wired DMX in/out, wired RDM input, Dongle Mode combined with an RC4 USB CodeLoader Cable becomes the hardware interface for RC4 Commander Software
Sensors: Input voltage, internal temperature, total current draw
DMX Input/Output: USITT DMX512/1990 data, RC4 3.5mm mini non-standard port
Maximum Output Power per Channel: 10A non-continuous, 5A continuous
Maximum Total Device Power: 16A (limited by screw terminal safety rating)
RF Antenna: hidden internal omnidirectional
