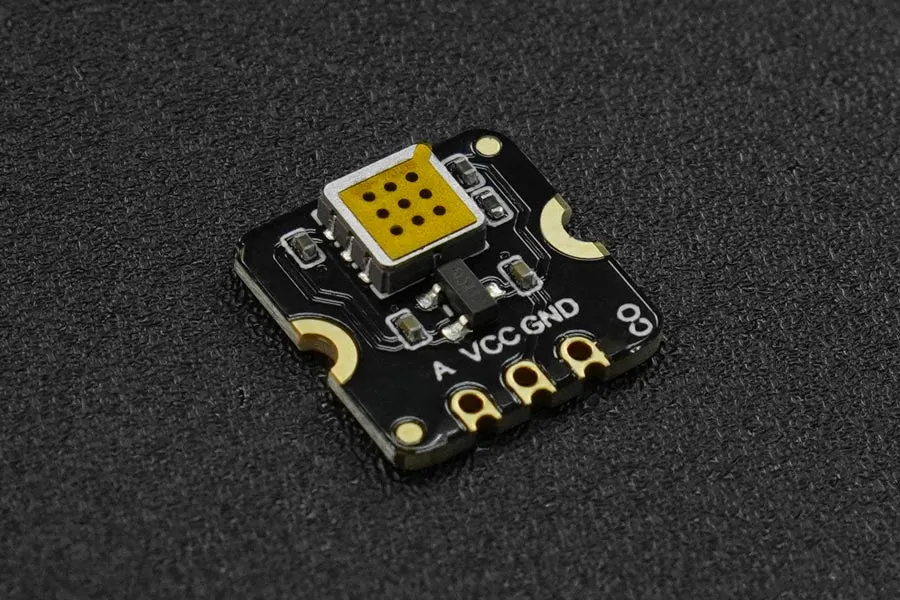

Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor features advanced micro electromechanical system (MEMS) technology, allowing for small dimensions (13x13x2.5mm), low power draw (20 mA), reduced heat generation, quick preheating times, and fast response rates. It is suitable for carbon monoxide leak alarms and portable carbon monoxide detectors, with the capability to qualitatively measure carbon monoxide gas concentrations.
The MEMS series currently encompasses 11 different types of gas sensors (, , , , , , , , , , ), which can be combined as per specific requirements.
Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the
Figure: Wiring Diagram of Fermion: MEMS CO sensor and Arduino UNO
Precautions for use
Kindly remove the protective film before usage.
To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
Prevent contamination from alkalis, alkali metal salts, and halogens.
Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
Avoid contact with water, condensation, and freezing.
Minimize excessive vibration, impact, and dropping.
Please refrain from employing this module in systems that involve personal safety concerns.
For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
Features:
Compact size, measuring only 13*13*2.5mm
Low power consumption
High sensitivity and rapid response recovery
Advanced MEMS technology
Applications:
Petrochemical carbon monoxide detection
Metallurgy carbon monoxide detection
Mining carbon monoxide detection
Environmental protection
Specification:
Gas detected: CO
Detection range: 5-5000ppm
Operating voltage: 3.3-5V
Operating current: 20 mA
Output signal: Analog voltage
Sensitivity: R0(in air)/Rs(in 150ppm CO) ≥ 3
Operating temperature: -10-50
Operating humidity: 15-90%RH (non-condensing)
Lifespan: ≥5 years (in air)
Dimension13×13 x 2.5mm/0.0.51×0.51x0.1"
Product Includes:
Fermion: MEMS Carbon Monoxide CO Sensor (breakout) × 1
2.54mm pitch header pin × 1
