DH-C788E63

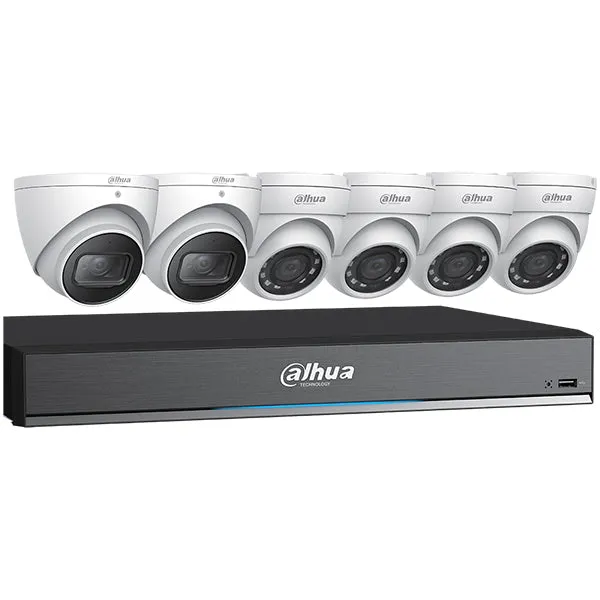

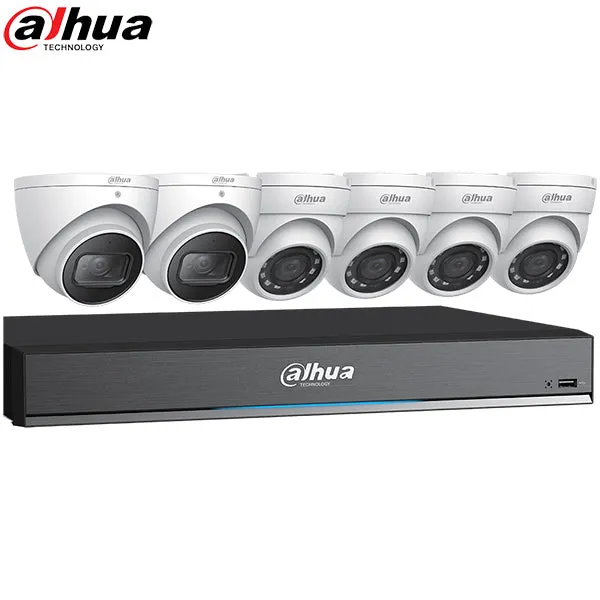

The Dahua HDCVI Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The HDCVI cameras offer the clarity of 4K video, and the HDCVI DVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The cameras and the HDCVI DVR supports multiple video outputs making the kit compatible with many existing systems. The kit features Dahua's HDCVI technology that leverages an existing coaxial infrastructure, saving time and costs from running networking and power cables.

• 5 MP HDCVI Cameras
• 5 MP at 20 fps Maximum Resolution (Default camera resolution is set to 4 MP.)
• 2.8 mm Fixed Lens
• Maximum IR Length: 30 m (98 ft) with Smart IR
• IP67 Ingress Protection
• 4K HDCVI Cameras
• 8 MP at 15 fps Maximum Resolution
• 2.8 mm Fixed Lens
• Maximum IR Length: 50 m (164 ft) with Smart IR
• IP67 Ingress Protection
• 4K HDCVI DVR
• Embedded Processor
• 8 Channel Penta-brid Recorder
• Support for 8 8 IP Channels
• Smart H.265 and Smart H.264 Dual Codec
• 4K at 7 fps Recording Resolution on all HDCVI Channels
• Automatically Detects HDCVI, AHD, TVI, and CVBS Inputs
• 64 Mbps Incoming Bandwidth

Technical Specification

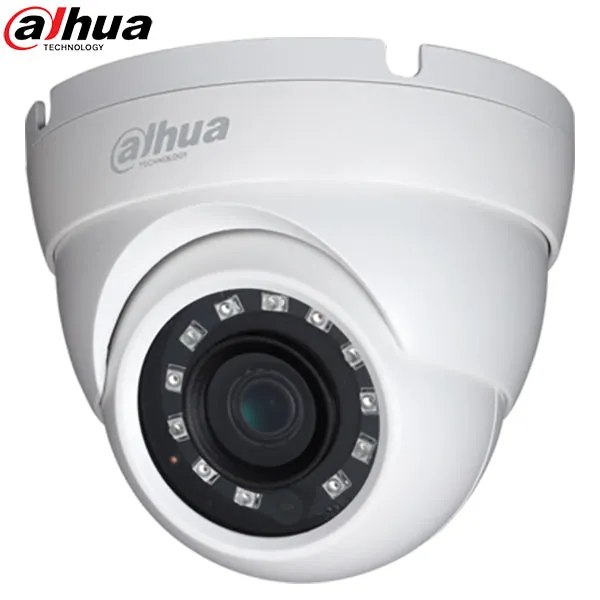

A511K02 HDCVI Camera
Camera
Image Sensor	1/2.7-in. CMOS
Effective Pixels	2592 (H) x 1944 (V), 5 MP
Scanning System	Progressive
Electronic Shutter Speed	1/30 s to 1/100000 s
Minimum Illumination	Color: 0.02 Lux at F1.85 (30 IRE) 0 Lux with IR on
S/N Ratio	More than 65 dB
IR Distance	Up to 30 m (98.04 ft)
IR On/Off Contro	Auto, Manual
IR LEDs	12
Lens
Lens Type	Fixed Lens / Fixed Iris
Mount Type	Board-in
Focal Length	2.8 mm
Max Aperture	F1.85
Horizontal Angle of View	103°
Close Focus Distance	900 mm (35.43 in.)
DORI¹ Distance - Detect (8 ppf)	63 m (207 ft)
DORI¹ Distance - Observe (19 ppf)	25 m (82 ft)
DORI¹ Distance - Recognize (38 ppf)	13 m (43 ft)
DORI¹ Distance - Identify (76 ppf)	6 m (20 ft)

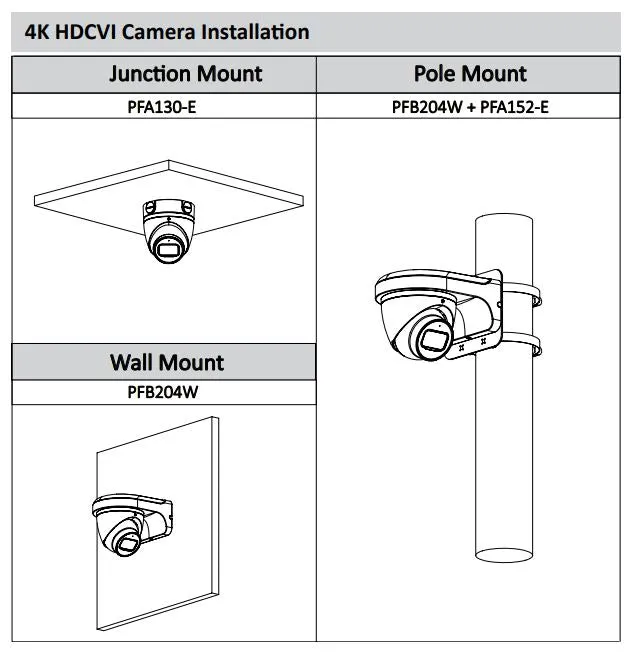

Installation Angle
Range	Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360°
Video
Resolution	5 MP (2592 x 1944)
Frame Rate	5 MP at 20 fps, 4 MP at 30 fps, 1080p at 30 fps
Video Output	One (1) BNC HDCVI High-definition Channel or One (1) BNC CVBS, AHD or TVI Channel, switchable
Video Transmission²
RG-59/U Coax	720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4 MP: 500 m (1640.42 ft)
RG-6/U Coax	720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4 MP: 700 m (2296.59 ft)
CAT 6 UTP (balun required)	720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4 MP: 300 m (984.25 ft)
Day/Night	Auto (ICR), Manual
OSD Menu	Multi-language
BLC Mode	BLC, HLC, DWDR
WDR	Digital WDR
Gain Control	AGC
Noise Reduction	2D
White Balance	Auto, Manual
Smart IR	Auto, Manual
Certifications
Safety	EN55032, EN55024, EN50130-4 UL60950-1 CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC)	FCC CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014
Electrical
Power Supply	12 VDC ±30%
Power Consumption	Maximum 3.6 W (12 VDC with IR on)
Environmental
Operating Conditions	–40° C to 60° C (–40° F to 140° F), Less than 95% RH Initiate startup above –40° C (–40° F)
Storage Conditions	––40° C to 60° C (–40° F to 140° F), Less than 95% RH
Ingress Protection	IP67
Construction
Casing	Aluminum

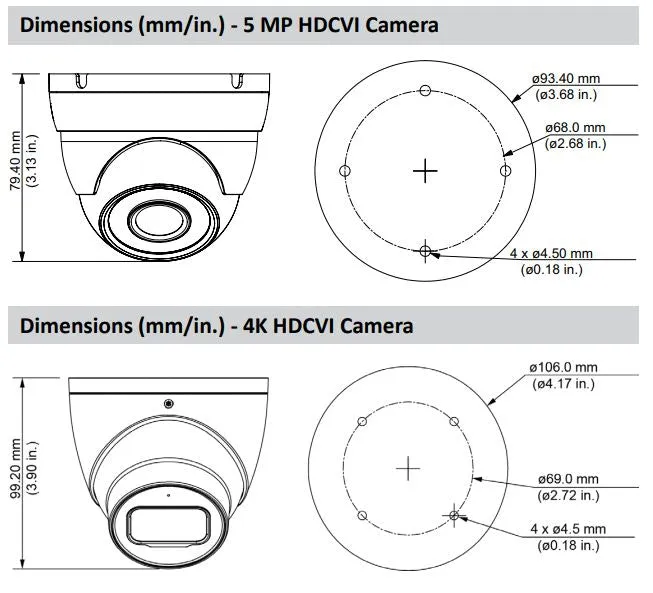

Dimensions	ø93.40 mm × 79.40 mm (ø3.68 in. x 3.13 in.)
Net Weight	0.28 kg (0.62 lb)
Gross Weight	0.38 kg (0.84 lb)

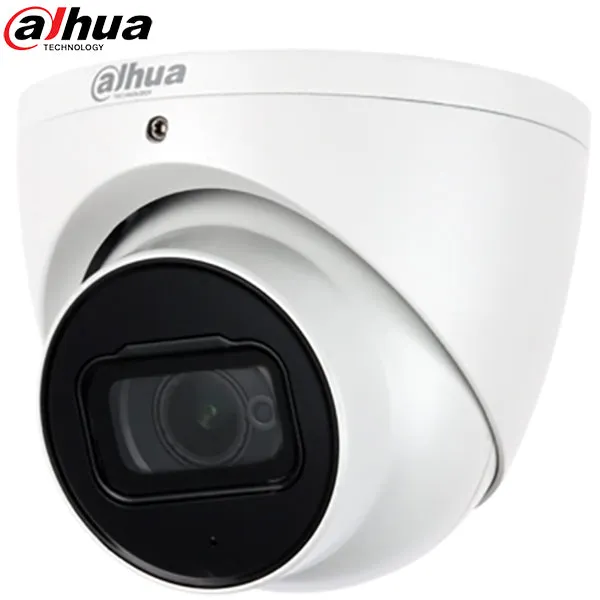

A82AG52 4K HDCVI Camera
Camera
Image Sensor	1/2-in. CMOS
Effective Pixels	3840 (H) x 2160 (V), 8 MP
Scanning System	Progressive
Electronic Shutter Speed	1/30 s to 1/100000 s
Minimum Illumination	Color: 0.005 Lux at F1.6 (30 IRE) 0 Lux with IR on
S/N Ratio	More than 65 dB
IR Distance	Up to 50 m (164.04 ft)
IR On/Off Control	Auto, Manual
IR LEDs	Two (2)
Lens
Lens Type	Fixed Lens / Fixed Iris
Mount Type	Board-in
Focal Length	2.8 mm
Max Aperture	F1.6
Horizontal Angle of View	87°
Focus Control	Auto, Manual
Close Focus Distance	1800 mm (70.87 in.)
DORI² Distance - Detect (8 ppf)	84 m (276 ft)
DORI² Distance - Observe (19 ppf)	34 m (112 ft)
DORI² Distance - Recognize (38 ppf)	17 m (56 ft)
DORI² Distance - Identify (76 ppf)	8 m (27 ft)
Installation Angle
Range	Pan: 0° to 360° Tilt: 0° to 70° Rotation: 0° to 360°
Video
Resolution	8 MP (3840 x 2160)
Frame Rate - HDCVI	8 MP at 15 fps, 6 MP at 20 fps, or 4 MP at 30 fps
Frame Rate - TVI	5 MP at 20 fps 4 MP at 30 fps
Frame Rate - AHD	5 MP at 20 fps 4 MP at 30 fps
Frame Rate - CVBS	960H
Video Output	One (1) BNC HDCVI 4K Ultra High-definition Channel or One (1) BNC CVBS, AHD or TVI Channel, switchable
Video Transmission³ - RG-59/U Coax	720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K: 500 m (1640.42 ft)
Video Transmission³ - RG-6/U Coax	720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4K: 700 m (2296.59 ft)
Video Transmission³ - CAT 6 UTP (balun required)	720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4K: 300 m (984.25 ft)
Day/Night	Auto (ICR), Manual
OSD Menu	Multi-language
BLC Mode	BLC, HLC, WDR
WDR	True WDR (120 dB)
Gain Contro	AGC
Noise Reduction	2D, 3D
White Balance	Auto, Manual
Smart IR	Auto, Manual
Certifications
Safety	EN55032, EN55024, EN50130-4 UL60950-1 CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC)	FCC CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014
Interface
Audio	Input: One (1) Channel, RCA Jack, and One(1) Built-in Microphone
Electrical
Power Supply	12 VDC ±30%
Power Consumption	Maximum 8 W (12 VDC with IR on)
Environmental
Operating Conditions	–30° C to 60° C (–22° F to 140° F), Less than 90% RH Initiate startup above –30° C (–22° F)
Storage Conditions	–30° C to 60° C (–22° F to 140° F), Less than 90% RH
Ingress Protection	IP67
Construction
Casing	Aluminium
Dimensions	ø106.0 mm × 99.20 mm (ø4.17 in. x 3.90 in.)
Net Weight	0.50 kg (1.10 lb)
Gross Weight	0.62 kg (1.37 lb)

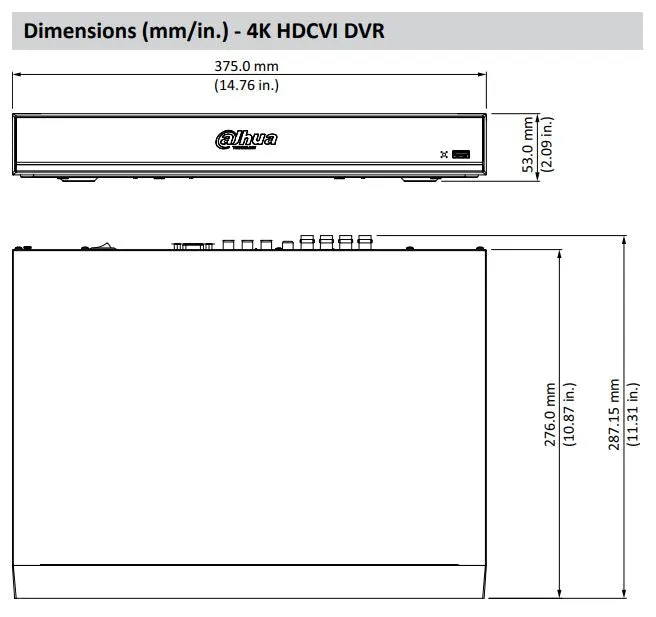

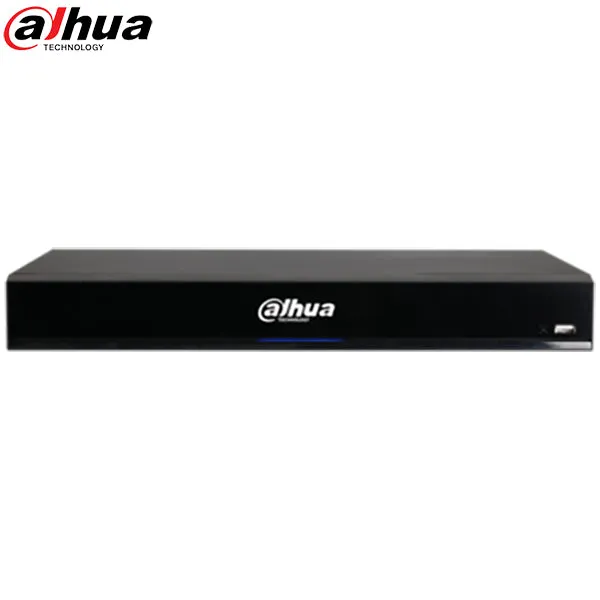

X72A2A3 4K HDCVI DVR
System
Main Processor	Embedded Processor
Operating System	Embedded LINUX

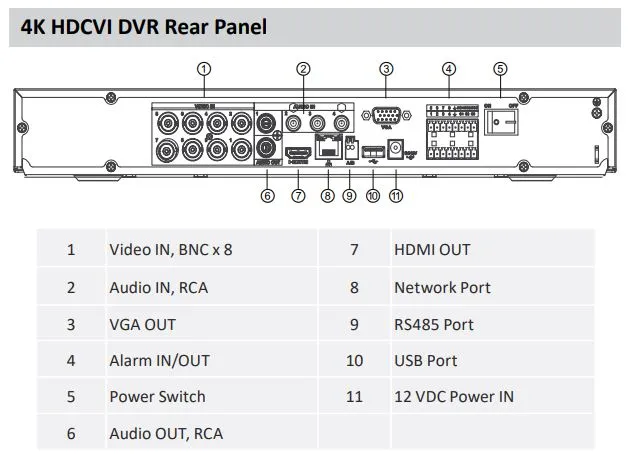

Interface
Analog Camera Input	8 Channels, BNC
HDCVI	8 MP, 6 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps, 720p at 30 fps
AHD	5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps
TVI	5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps
CVBS	NTSC
IP Camera Input	8 8 Channels, each channel up to 8 MP
Audio	Input: Four (4) Channels, RCA Output: One (1) Channel, RCA
Two-way Talk	Reuse Audio In/Out, RCA
Recording
Compression	Smart H.265 , H.265, Smart H.264 , H.264
Recording Resolution	8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 4 M-N (1280 x 1440), 1080p, 720p, 960H, D1, CIF
Record Rate - Main Stream	8 MP at 7 fps; 6 MP at 10 fps, 5 MP at 12 fps, 4 MP or 3 MP at 15 fps; 4 M-N, 1080p, 720p, 960H, D1, CIF or QCIF at 30 fps
Record Rate - Sub Stream	960H at 15 fps; D1 or CIF at 30 fps
Maximum Incoming Bandwidth	64 Mbps
Bit Rate	32 Kbps to 6144 Kbps per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 to 60 minutes (default: 60 minutes), Pre-record: 1 to 30 s, Post-record: 10 to 300 s
Audio Compression	AAC (first channel only), G.711A, G.711U, PCM
Audio Sample Rate	8 KHz, 16 bits per Channel
Audio Bit Rate	64 Kbps per Channel
Display
Interface	One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080)
Spot Output	HDMI or VGA, configurable
Native Output Resolution - HDMI	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Native Output Resolution - VGA	1920 x 1080, 1280 x 1024, 1280 x 720
Maximum Decoding	Four (4) Channels of 4K at 7 fps Four (4) Channels of 6 MP at 10 fps Four (4) Channels of 5 MP at 12 fps Eight (8) Channels of 4 MP/3 MP at 15 fps Eight (8) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps
Multi-screen Display	IP extension mode disabled: 1/4/8/9 IP extension mode enabled: 1/4/8/9/16
On-sceen Display	Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Network
Interface	One (1) RJ45 (1000 Mbps) Port
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
Max. User Access	128 Users
Mobile Operating System	IOS, Android
Interoperability	ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm Input	16 Channels
Relay Output	Three (3) Channels
Playback and Backup
Playback	1/4/9
Search Mode	Time/Date, Alarm, MD and Exact Search (accurate to 1 second)
Playback Function	Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	Two (2) SATA Ports, up to 10 TB capacity for each disk Unit ships with a pre-installed 3 TB HDD
