Product Details
＋

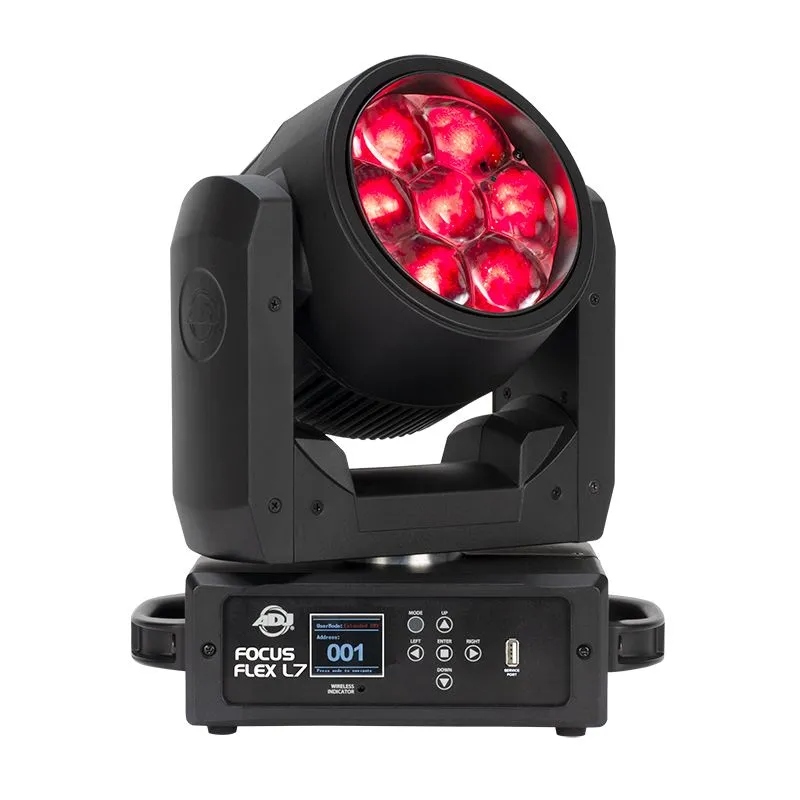

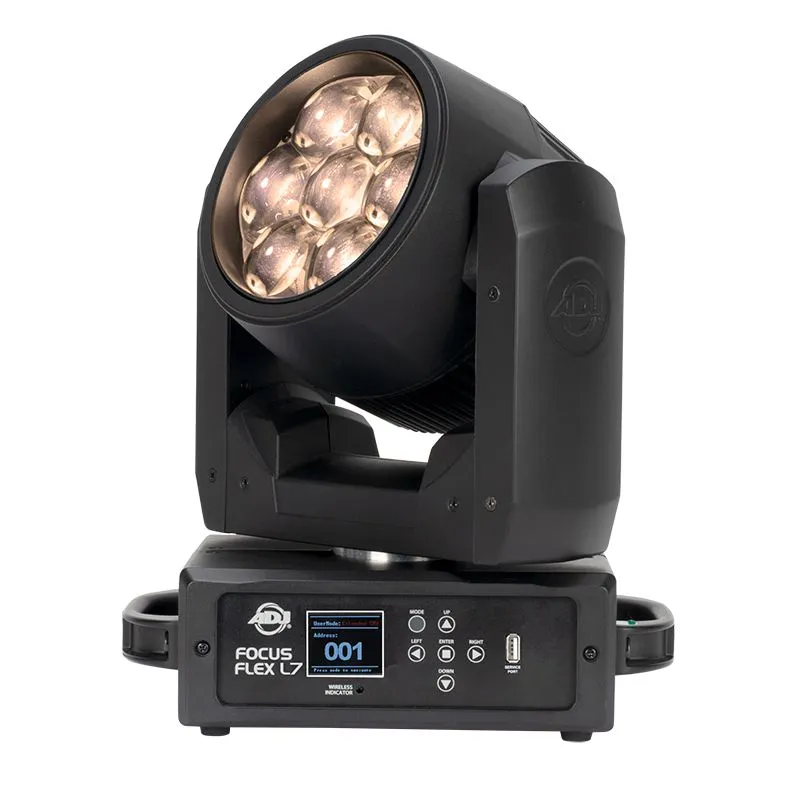

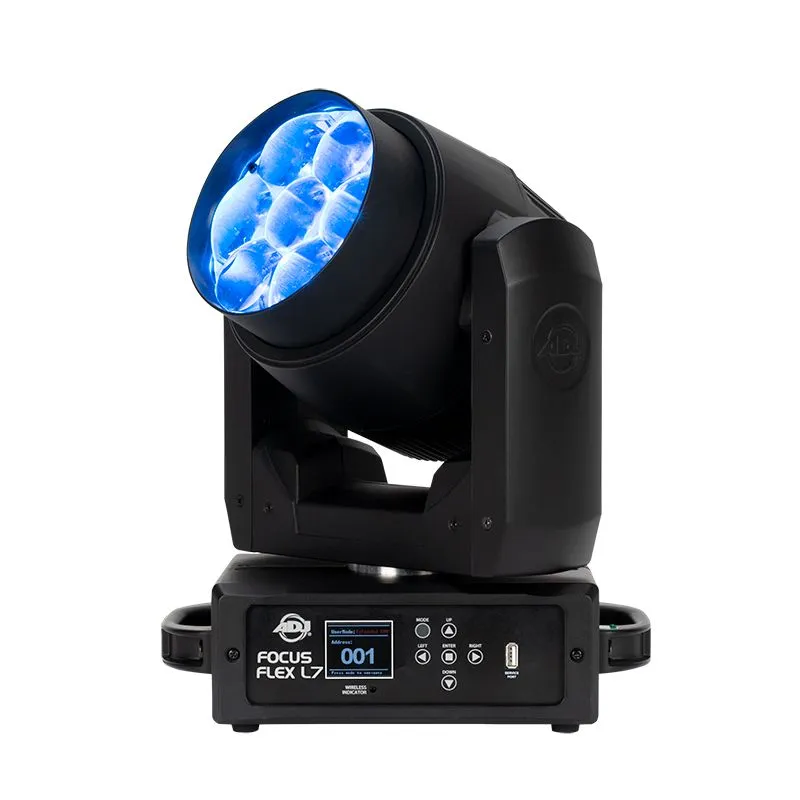

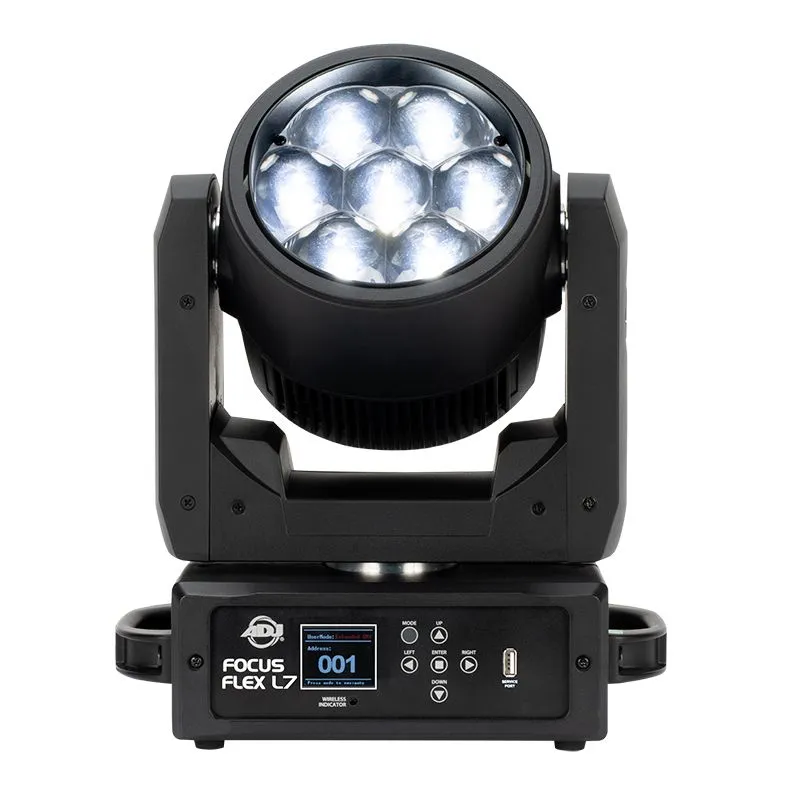

The Focus Flex L7 offers lighting designers the creative flexibility of generating vibrant washes, punchy beams, and eye-catching pixel effects from one compact and quick automated luminaire. Powered by an array of seven potent 40-Watt 4-in-1 RGBL color mixing LEDs, each of which can be controlled independently, it offers a motorized zoom function providing the versatility of a variable beam angle of between 6 and 55-degrees. With a variety of DMX mode options appropriate to different applications, it offers virtual CMY color mixing and virtual foreground and background color wheel control as well as a choice of seven different DMX modes ranging from 16 to 50 channels.
Source:
• 7 x 40-Watt RGBL LEDs (50,000 hr.)
• CRI: 83.4
• CT: 2700K ~ 10,000K
• 14,329 lux / 4° beam @ 16’ (5m)
• 367 lux / 35° beam @ 16’ (5m)
• Lumens: 3500 (Zoomed Out, Full On)
Features:
• Moving Head Pixel Wash with Pixel Effects
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 260
• Beam Angle: 4 ~ 35°
• Field Angle: 6 ~ 55°
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan Cooled
• Antenna for WiFLY EXR Wireless DMX
Colors:
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros

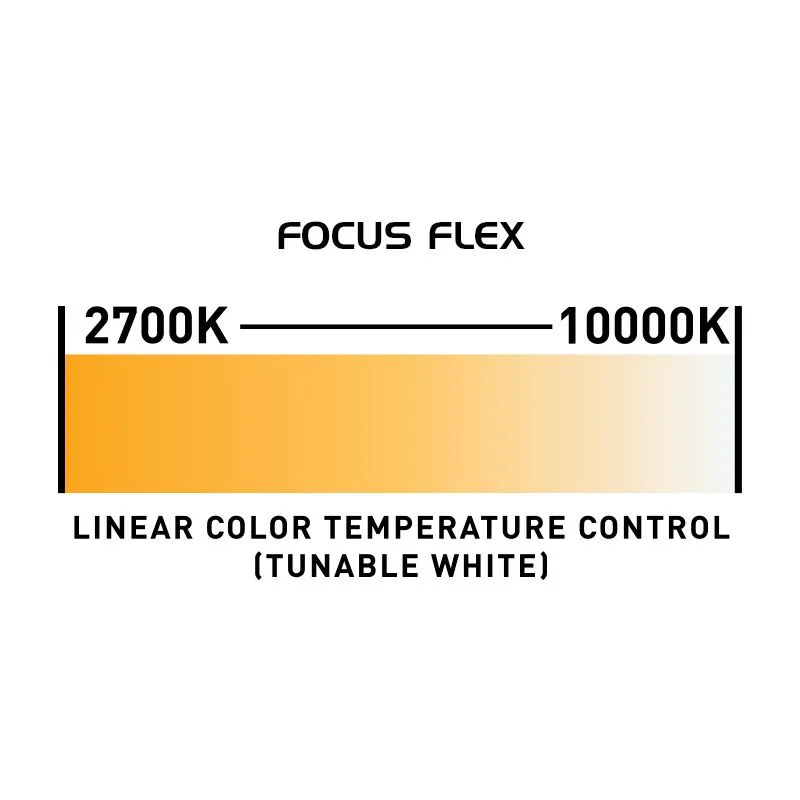

• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Control:
• 7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• Built-In Effect Pixel Programs with Speed and Fade Control
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
Pan/Tilt:
• Pan: 540/630 degrees
• Tilt: 265 degrees
Connections:
• DMX Connections: 5-pin XLR In/Out
• Power Connections: Indoor Locking Power In/Out
Electrical:
• Multi-voltage operation: 90-240V, 50/60Hz
• Max power consumption: 337W @120V
Dimensions & Weight:
• Dimensions (LxWxH): 7.0”L x 9.8”W x 13.7”H (178.8x250.0x349.2mm)
• Weight: 15.5lbs (7kg)
What’s Included:
• Omega Brackets
• 1.83M locking power cable
• Safety Cable
Optional Road Cases:
• DRC MH: 2 Focus Flex L7 fit in the DRC MH Road Case
• QRC MH: 4 Focus Flex L7 fit in the QRC MH Road Case
Approvals / Rating:
cETLus Approved
CE Certified
IP20
Specifications subject to change without notice
